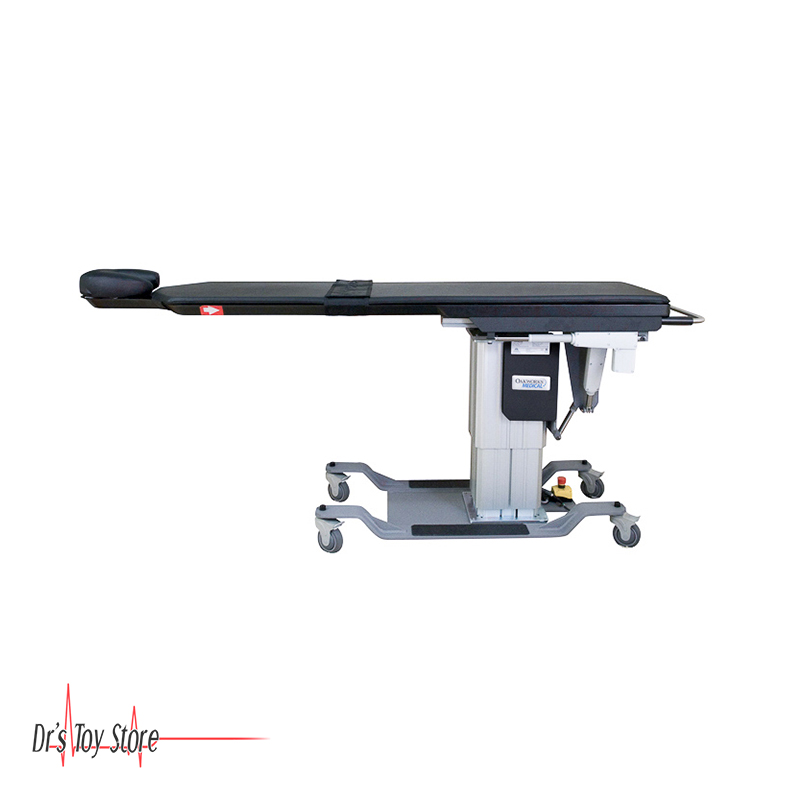

Oakworks CFPM400 Integrated Headrest C-Arm Table

Oakworks CFPM400 Integrated Headrest C-Arm Table

Introducing the Oakworks CFPM400 Integrated Headrest C-Arm Table for sale.

Oakworks CFPM400 Integrated Headrest C-Arm Table Features

• Carbon Fiber Top – 56 in. Metal-free imaging space
• Top Dimensions – 22 in. (56 cm) wide x 84 in. (214 cm) long
• Motion 1 – Electric Height Range 26 in. – 44 in. (66-112 cm)
• Motion 2 – Electric Trendelenburg tilt +15°/-12°
• Motion 3 – Electric Longitudinal travel 10 in. (25 cm)
• Motion 4 – Electric Lateral tilt ±15°

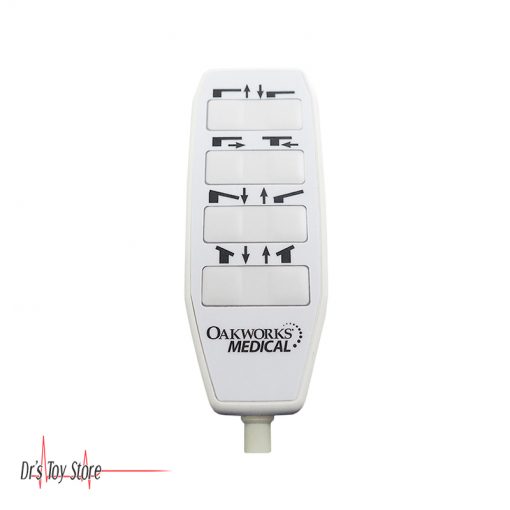

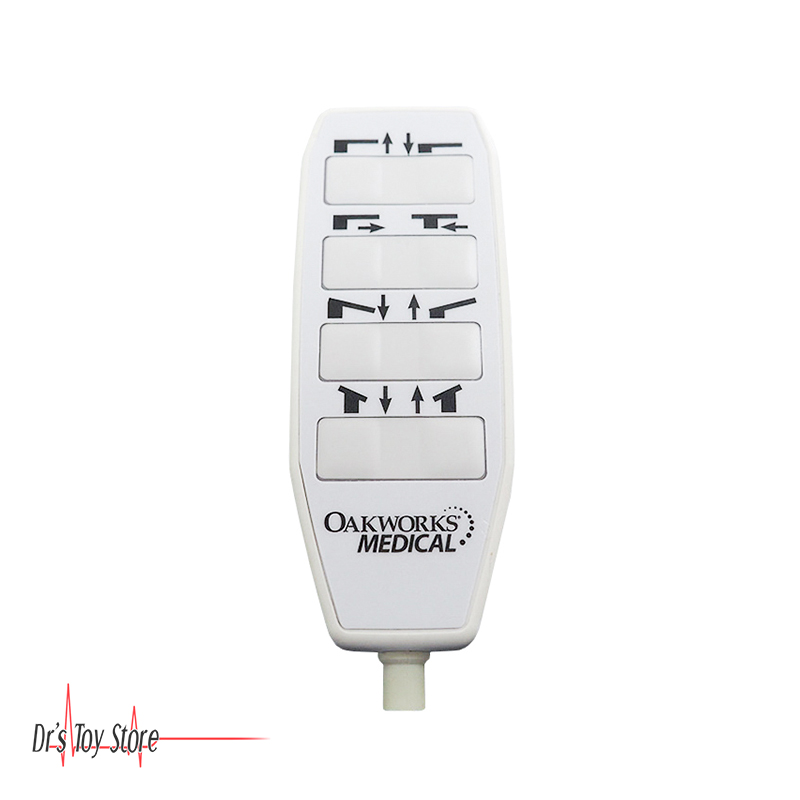

• Controls – Multi-function hand control
• Weight Capacity – 500 lbs. (227 kg)
• Product Weight – 475 lbs. (216 kg)
• Included Features – 1 in. (3 cm) Radiolucent Comfort Foam™ table top pad, 4 in. (10 cm) locking casters, Crescent face rest pad (included with integrated headrest top), patient safety straps (2)
• Industry’s Largest Adjustable Height Range 26″- 44″
• 56″ Metal Free Imaging Space
• Cost Effective 4 Movement Table
• Safety Listings – FDA Listed, CE marked, cETLus approved, CB Certificate
• Optional Features

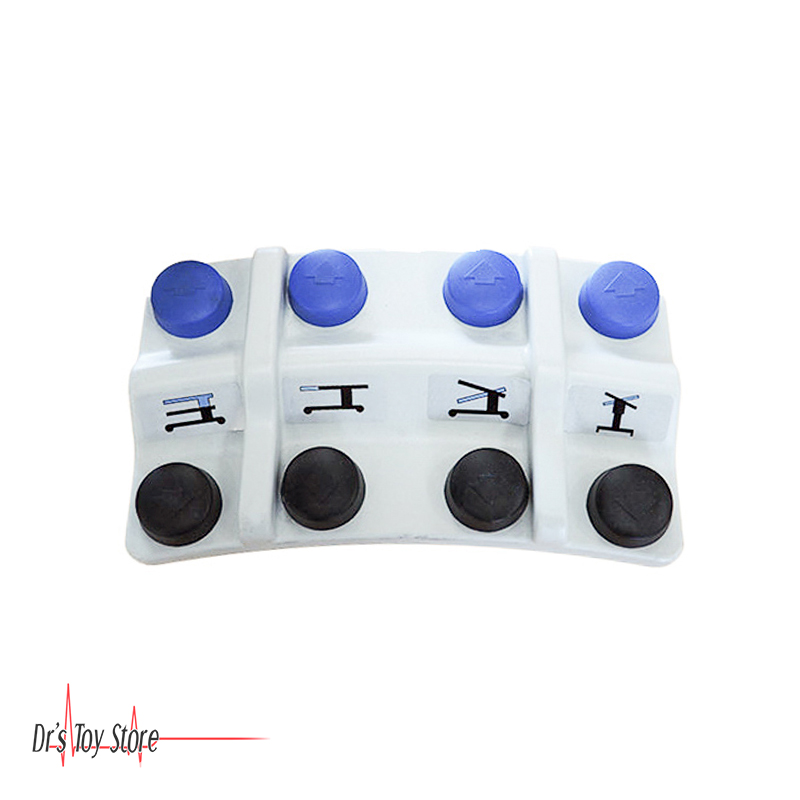

• Multi-function Foot Control (75077)
• 2 in. (5 cm) Table Top Pad Upgrade (73190-T01) – Upgrade from the standard 1 in. (3 cm) pad
• 5 in. (13 cm) casters (65427) – Upgrade from the standard 4 in. (10 cm)

Optional Accessories

• Arm Hammock (48751-T01) – Use with Integrated Head Rest Top
• Carbon Fiber Arm Board 6 in. wide (42585) – 180º Articulation
• Carbon Fiber Arm Board 7.5 in. wide 70337) – 180º Articulation
• Fluoro Extender (33975) – Polycarbonate
• Interventional Supine Pillow System (69808-T01) – Contoured pad and support wedge pad
• Spine Positioning System II (70100-T01) – 8-piece system
• T-rail Clamp (63336 ) – 6 in. (15cm) long rail

SINGLE CARBON FIBER ARM BOARD

Fully radiolucent with a 180° range of motion, the arm board requires no mounting or attachment hardware and simply slides under the table top pad. It can be used on any fluoroscopy table and will support arms and feet in a variety of positioning configurations. Folds for storage.

• 80º range of motion
• Requires no mounting or attachment hardware, slides under table top pad
• Comes with removable pad
• Folds for safe and compact storage
