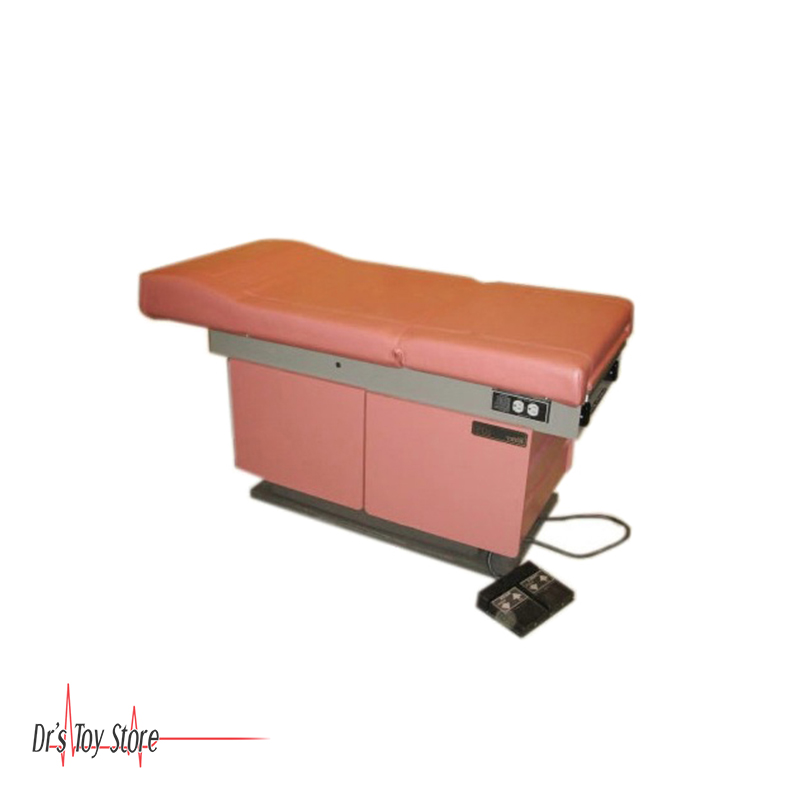

Midmark Ritter 105 Power Procedure Table


SKU: MRE-105 Category: Tag:

Midmark Ritter 105 Power Procedure Table

The Midmark Ritter 105 Power Procedure Table (Exam) has been designed to help reduce the effort and work fatigue involved in the examination of an ever-increasing number of patients during a doctor’s normal working day. Both the height of the table and the angle of the top are quickly and easily adjusted by the use of an electric hydraulic power unit. Height of the table can be adjusted from 25” to 36” and the angle of the top may be varied from horizontal to full chair position, thus providing a table which can not only be tailored to meet the individual doctor’s requirements but will also meet the requirements of most examinations being made in the doctor’s office today. All adjustments are controlled by a foot control switch, leaving both hands free while adjustments are being made.

Midmark Ritter 105 Power Procedure Table

  • General purpose exam table
  • Adjustable from a full horizontal position to chair position
  • Two storage drawers
  • Doors on left and right side of head end
  • Functions with hydraulic cylinders
  • Surface area is 27″ x 66″
  • Adjustable height 10″
  • 27″ to 37″ tall
  • Back inclines to approximately 80 degrees
  • Step control pedals
  • Stirrups

The Midmark Ritter 105 Exam Table is a general purpose examination table designed specifically for performing general medical examinations and procedures. The table top is adjustable from a full horizontal position to a chair position. The 105 has two storage drawers at the foot-end and doors on the left and right sides at the head-end for bulk storage which accommodate supplies used during examinations. This power table functions with hydraulic cylinders.

Midmark Ritter 105 Exam Table Specifications

  • NET Weight: 390 lbs
  • GROSS Weight: 450 lbs
  • Shipping Carton 60-1/2″ L x 30″ W x 42″ H
  • Table Top Length: 57″
  • Table Top Length (footrest extended): 74″
  • Table Top Width: 27″
  • Overall Width: 27″
  • Seat Height (to top of upholstered seat at foot end): 27″
  • Table Adjustment, Back Section: 0° to 70°
  • Patient Weight Capacity: 325 lbs maximum
  • Electrical Requirements
    • 115 VAC Model: 110 – 120 VAC | 60 Hz | 12 A | single phase
    • 220 VAC Model: 220 – 240 VAC | 50 / 60 Hz | 4 A
