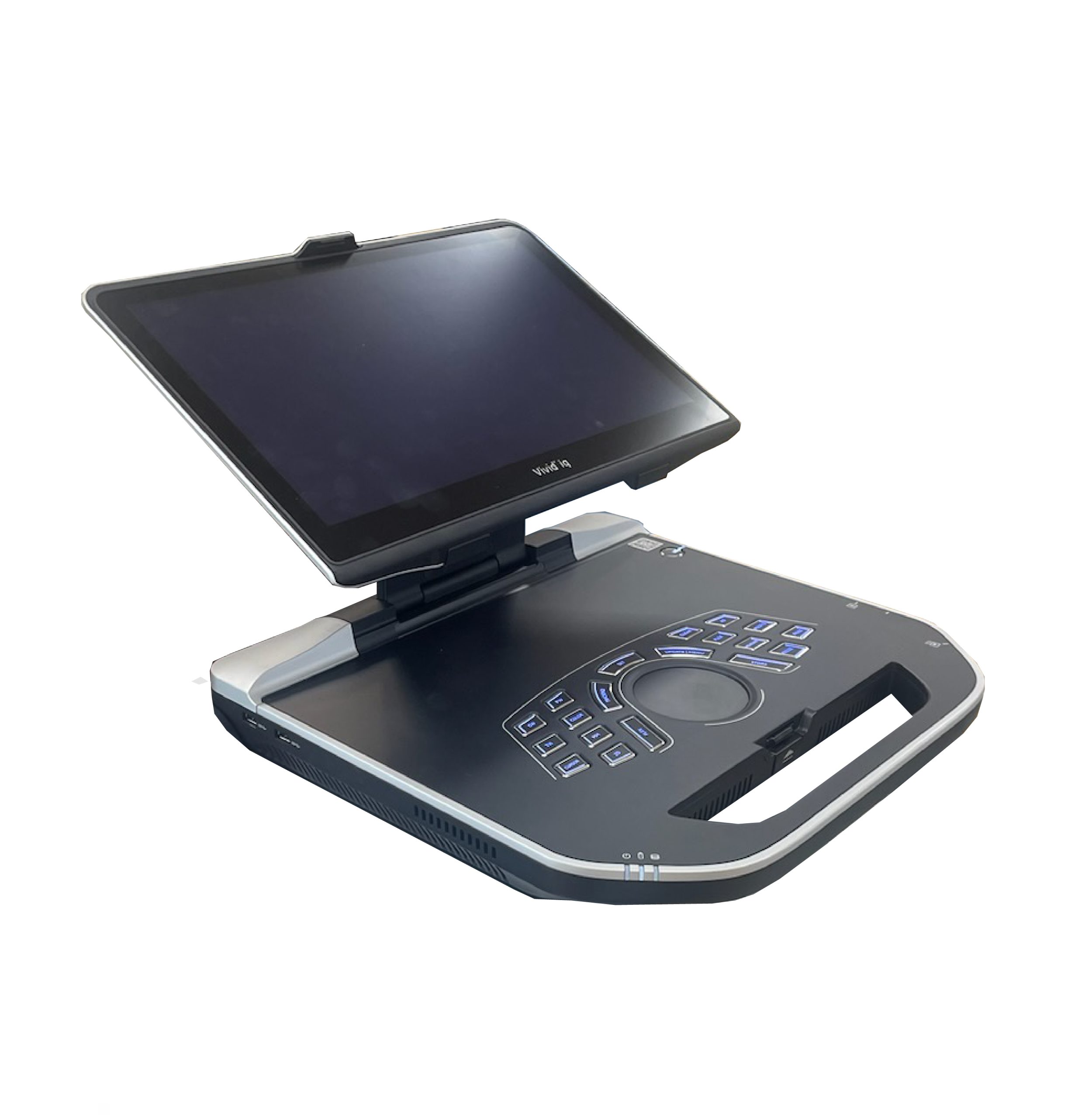

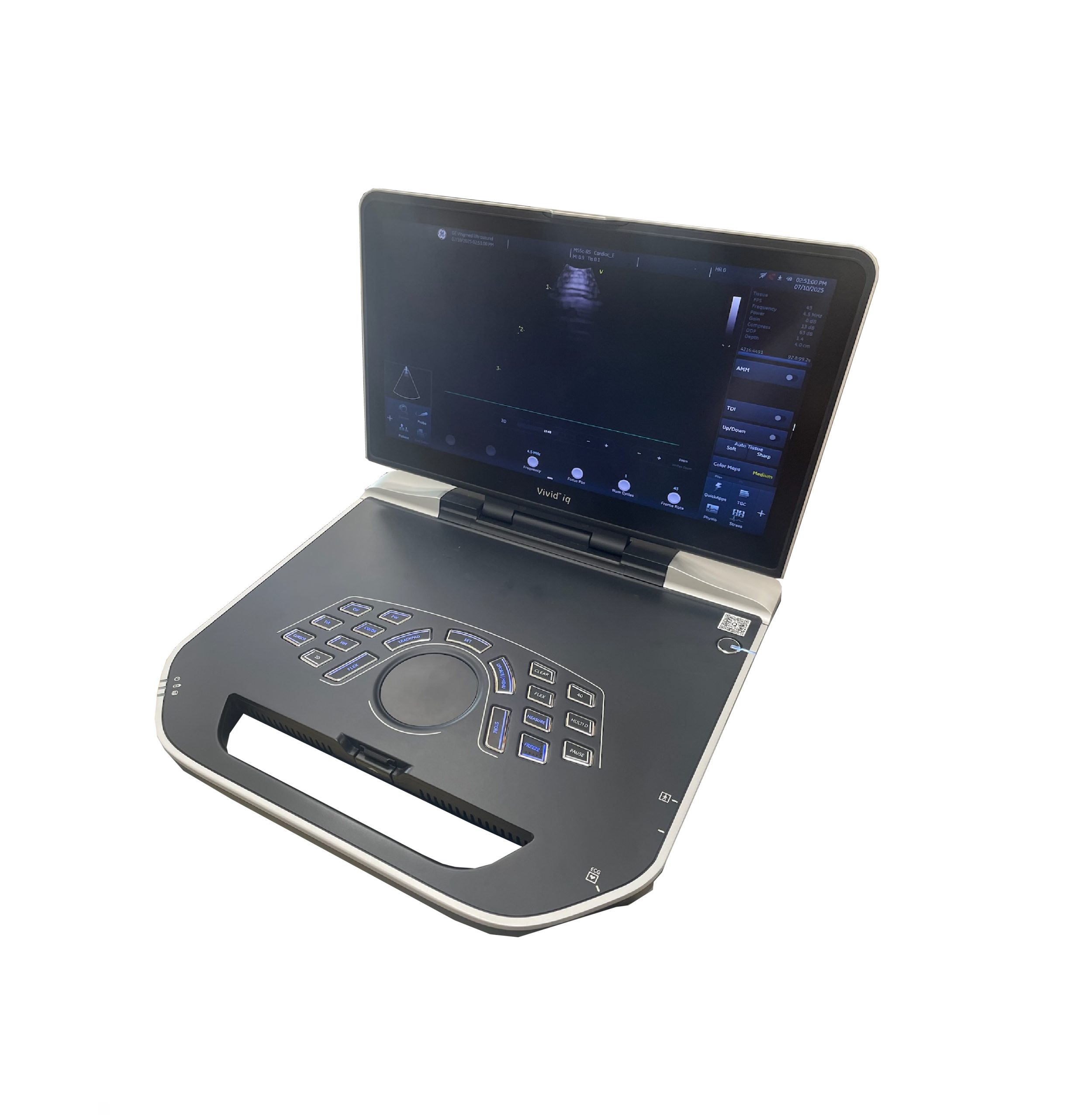

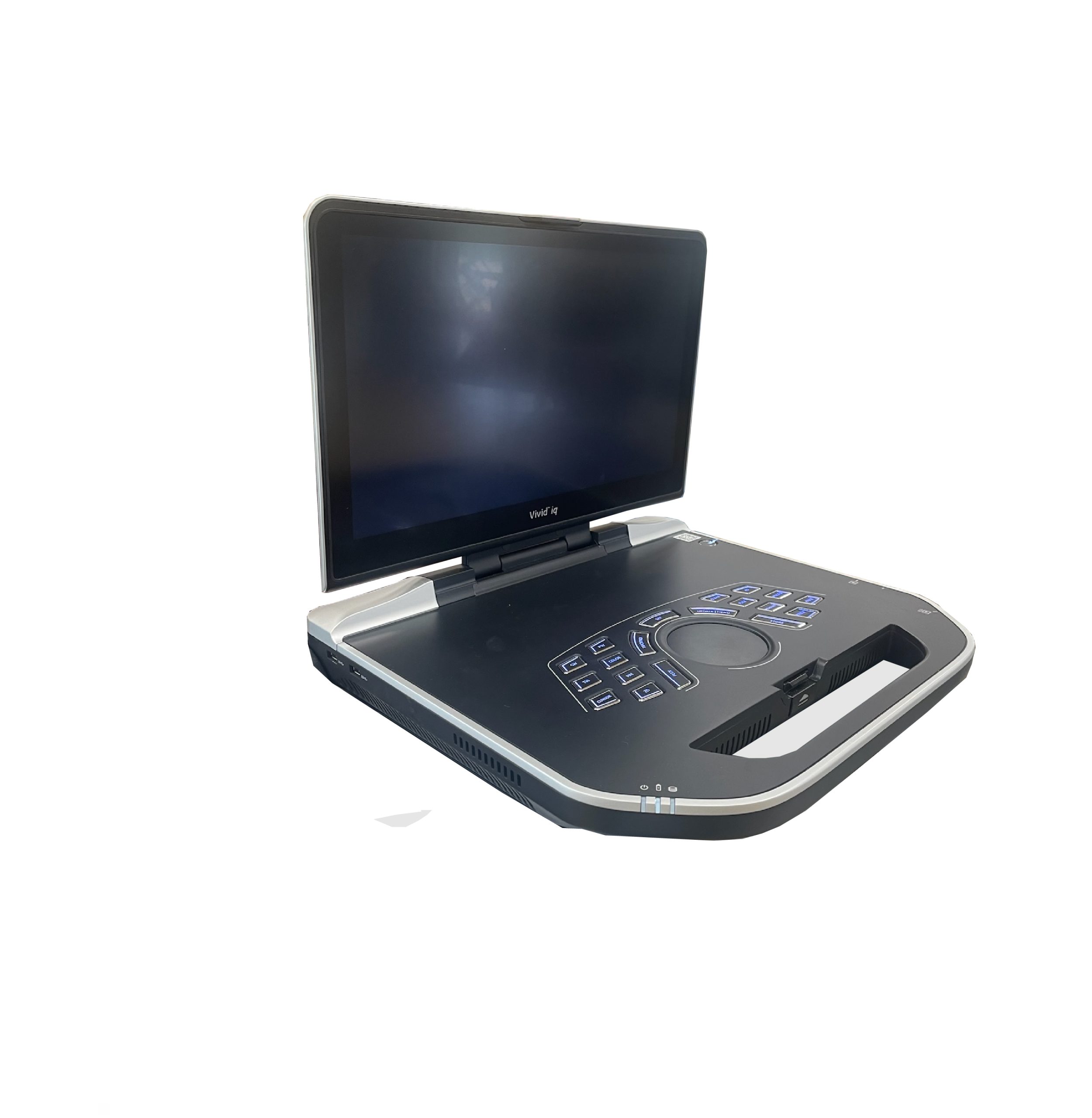

GE Vivid iq Ultrasound Machine

GE Vivid iq Ultrasound Machine

The GE Vivid iq portable cardiovascular ultrasound machine was the first touchscreen-based premium portable ultrasound machine. Its image quality is better than any other portable cardiovascular ultrasound, and the new design offers a surprisingly easy user experience.

The GE Vivid iq has much improved and clearer image quality than its predecessors (GE Vivid i and GE Vivid q). The architecture is new, a welcome change from the older technologies in previous GE portable cardiac ultrasound machines.

Although advertised as a premium cardiovascular ultrasound machine, it functions well as a shared-service ultrasound machine. It includes tools and applications for OB/GYN and other imaging types. It also offers excellent imaging for MSK and small parts.

Key Features

The GE Vivid iq is a complete cardiovascular ultrasound. It supports many imaging modes, including cardiac and vascular.

• Combines the best of the Vivid Ultrasound systems with the portability of a laptop
• Less than 10 lbs. – 10% lighter than Vivid Q
• AFI, 4D TEE, ICE
• Intuitive Touch Interface – use the same touchscreen gestures you use on your other smart devices – pinch to zoom, etc.

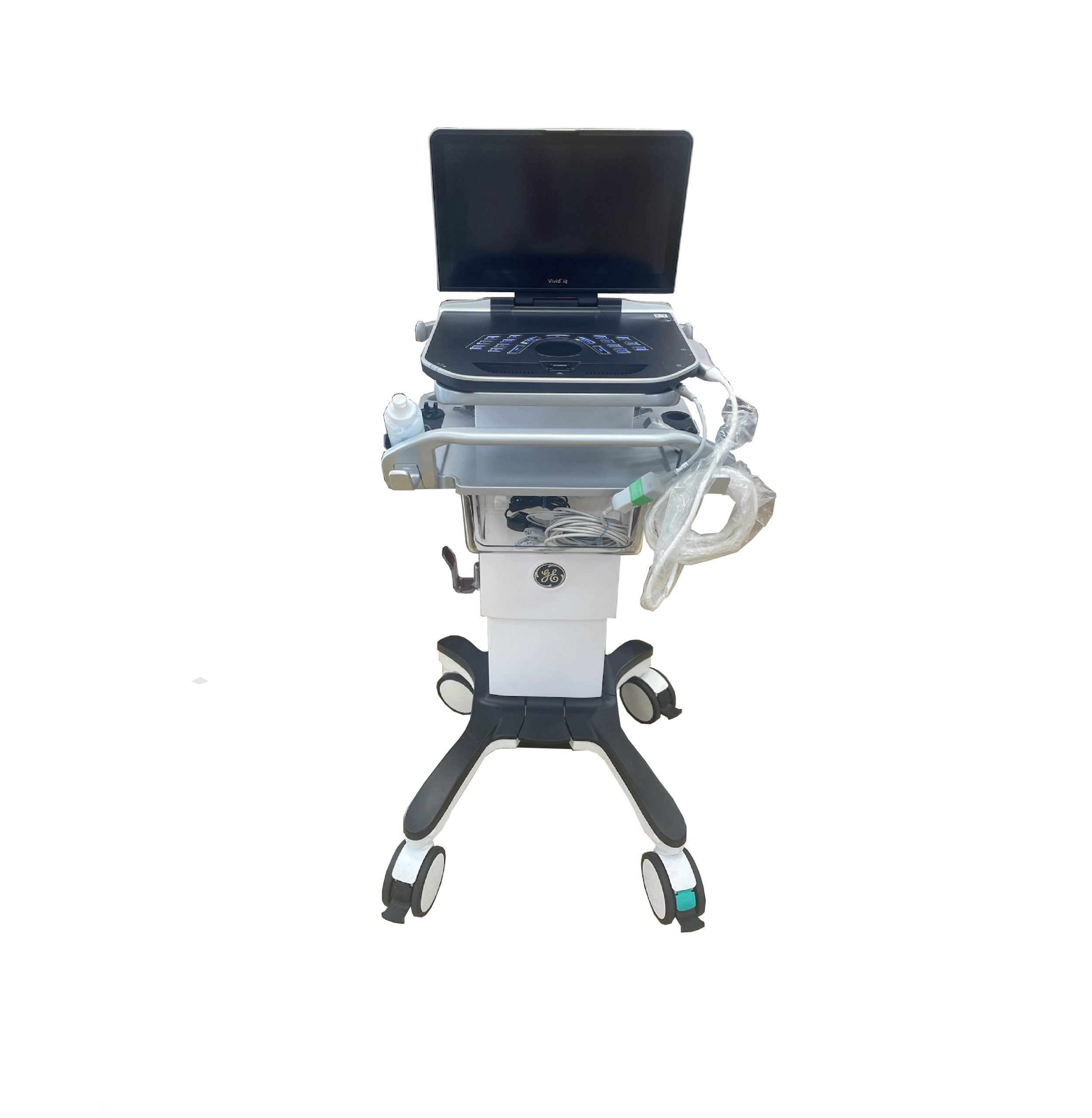

• Can be hand carried or placed on optional cart wherever you need it
• Optional cart rolls on specially designed casters which are easy to maneuver through various clinical environments
• 4 Hours of battery life on a full charge – 1 hour on the laptop, 3 additional on the optional cart
• 3 standard RS Probe ports
• 1 DLP probe port
• Multiple ports allows scanning in several different applications, which increases workflow efficiency
• Trackpad replaces the trackball in previous models – allows you to switch between touch and trackpad seamlessly
• Closed and flat keyboard surface allows for easy clean up – simply wipe with a disinfectant solution
• Scan Assist which allows user to create customizable protocols
• Simple to configure menus and shortcuts, with drag and drop interface
• Unprecedented 3-Year Warranty from GE Healthcare with loaner

Offers a Wide Array of RS Probes in Both Cardiac & Shared Service:

• RS Transducers
• 2 ICE Catheters – 8 French, 10 French
• 4D TEE Probe – 6VTD
• 17 Total Probes

Quantitative Tools Include:

• Tissue Velocity Imaging
• Tissue Tracking
• Tissue Synchronization Imaging
• Strain Rate Imaging
• Auto EF
• AFI
• Advanced 4D Quantitative Tools

Shared Service Tools Include:

• Auto INT
• Logiqview
• BFI
• Bflow

Specifications

• Weight & Dimensions: 11.5 lbs, 2.5″ x 15.5″ x 14″
• Monitor: 15.6” Ultra-high Resolution LCD with 1920×1080 resolution
• Storage: 128GB SSD
• Ports:
  • 1 Active Probe Port
  • 5 USB ports
  • Ethernet
  • HDMI
  • Wireless Adapter
• Input: Trackball
• Battery: Yes
• CD/DVD-R: External
• DICOM Options: Commitment, MPPS, Print, Query/Retrieve, Store, Structured Reports, Verify, Worklist.
• Export Options: AVI, DICOM, External Hard Disk, JPG, MPEG, RAW, USB
• Features: Anatomical M-Mode, Auto Optimization, AutoEF, AutoIMT, B-Flow, Color Doppler, Color M-Mode, CW Doppler, DICOM, IMT, M-Mode, PW Doppler, Scan Assistant, Speckle Reduction, Stress Echo, TEE, Tissue Doppler, Tissue Harmonics, Tissue Tracking, Tissue Velocity M-Mode, Virtual Convex
• Imaging Modes: 2D
• Max Cine Memory: 2GB
• Max Frame Rate (FPS): 1
• Maximum Depth (CM): 33
• Power: 100-240V, 50/60 Hz (USA)
• Primary Applications: Cardiac, General Imaging, Vascular
• Popular Configurations: 3sC-RS, 4C-RS, 9L-RS.
• Year Built: 2016-Current
