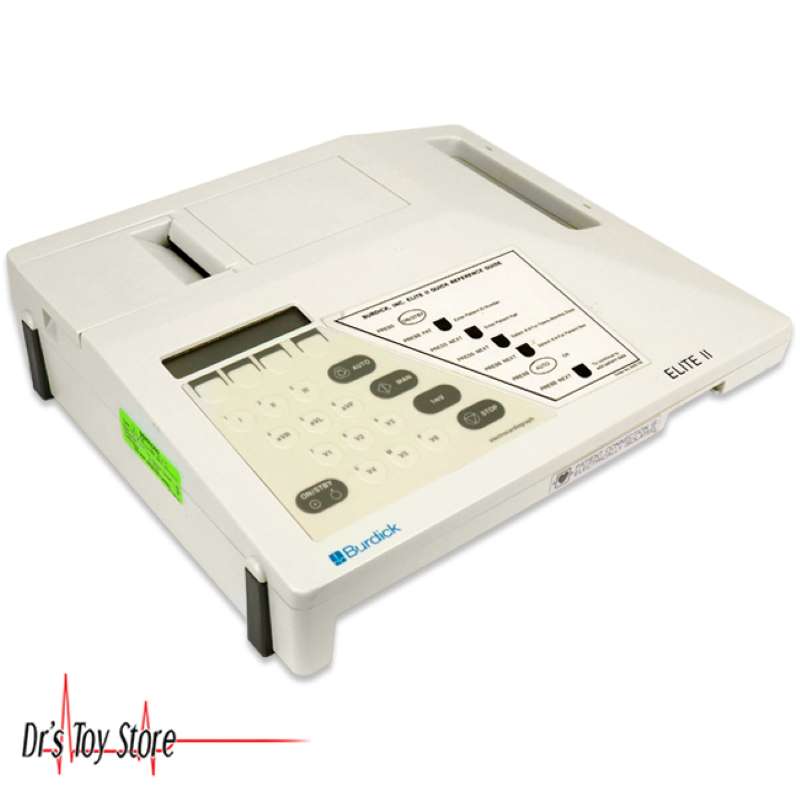

Burdick Elite II EKG Machine
The Burdick Elite II provides ECG reports quickly and easily from an affordable, compact package.
Choose the Burdick Elite II EKG Machine for accurate analysis and simple operation in a portable unit.
*Easy, one-touch operation.
*Portable; weighs just 9 pounds.
*Battery or AC operation.
*Stores up to 30 ECGs in solid-state memory.
*Prints in single-channel or 12 lead format for easy mounting.
*Simultaneous acquisition and analysis of all 12 leads.
*Uses the Glasgow Royal Infirmary (GRI) Interpretive Algorithm for documented accuracy.
*Dimensions: 11″ x 13″ x 3.25″
*Weight: 9 lbs. (including battery)
*Display: 2 x 20 character LCD
*Keyboard: Numeric entry: hardkey control Input/output:
*Serial: RS-232 (9-pin D);
*Signal options: 1 mV input – 1 V output +/_ 1-%
*Power requirements: AC operation: 115/230 V AC +/- 10%, 50/60 Hz;
*Battery operation: 12.5 V NiCad rechargeable battery pack.
*Printout: Printout device: 48 mm thermal dot array;
*Paper dimensions: 50 mm wide, 45 mm grid, 45.7 m
(150 ft) per roll; Paper type: Thermal-sensitive;
*Chart speeds: 25, 50 mm/sec. +/- 2%;
*Printout formats: 1-channel automatic or manual Acquisition:
*Lead selection: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6;
*Modes: Automatic or manual;
*Frequency response: 0.05 Hz to 30 Hz, -3 db (filtered)
*Meets or exceeds ANSI/AAMI EC11-1982 standard
*Input impedance: >50 Mohms; Electrode
*Offset tolerance: +/- 300 mV; A/D conversion: 12 bit, 5 uV LSB
