Schiller Medilog AR12Plus Holter with DARWIN2 Enterprise Software

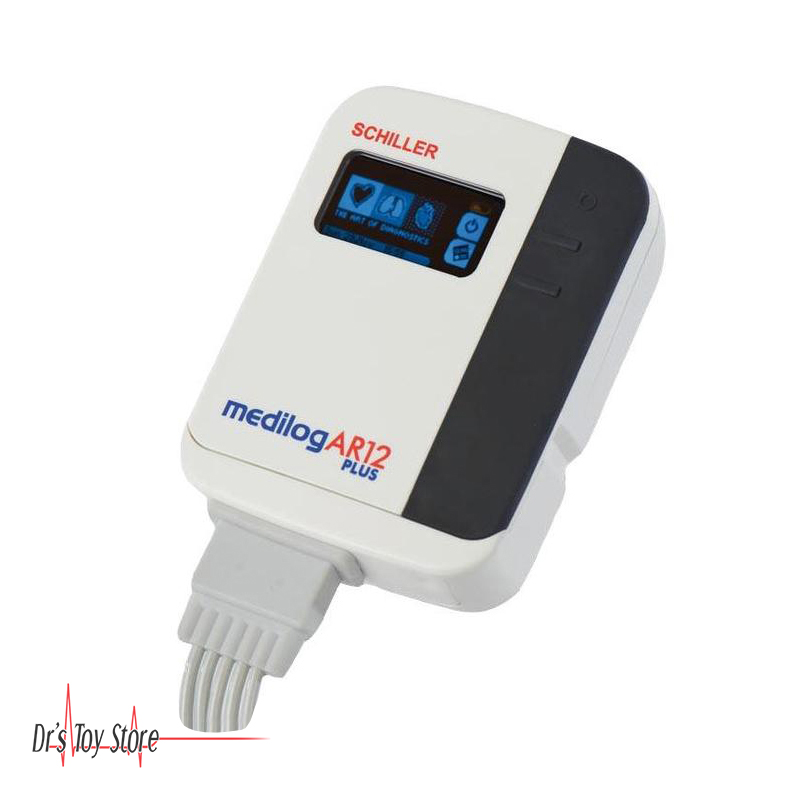

Introducing the Schiller Medilog AR12Plus Holter Recorder with DARWIN2 Software.

Schiller’s medilog Holter system provides a comprehensive analysis of the human being as a whole. Atrial fibrillation detection, sleep apnoea screening and the determination of the quality of life are just some of the exceptional features of medilog. Designed with feedback from hundreds of cardiologists and cardiac technicians worldwide, medilog offers unparalleled accuracy and opens up new possibilities for Holter analysis.

With medilog DARWIN2, you can now process a routine Holter ECG quicker and more accurately. In addition to the detection of all cardiac pathological events, medilog DARWIN2 provides a comprehensive analysis of the human being as a unit. Functional atrial diagnostics, apnoea diagnostics and the determination of the quality of life are just some of the exceptionally useful features that medilog DARWIN 2 uses to filter information from a Holter recording without any additional sensors.

Features and Benefits
  • Pure ECG Technology records ECGs in a clearer way than is achieved with comparable products.
    • Holter ECG recordings show fewer artifacts and require less time for post-processing – even for active patients.
  • Heart Rate Variability (HRV) analyzes beat-to-beat time intervals of the heart rate.
    • Throughout a 24-hour period, the heart rate is continuously adjusted by the autonomic nervous system in response to internal and external triggers like physical activation, stress, relaxation, recovery, and sleep.
  • Fire of Life software analyzes and displays HRV in a new way to help judge autonomic nervous system functions.
    • Indicates if therapeutic actions or lifestyle changes are successful in reducing stress and improving recovery.

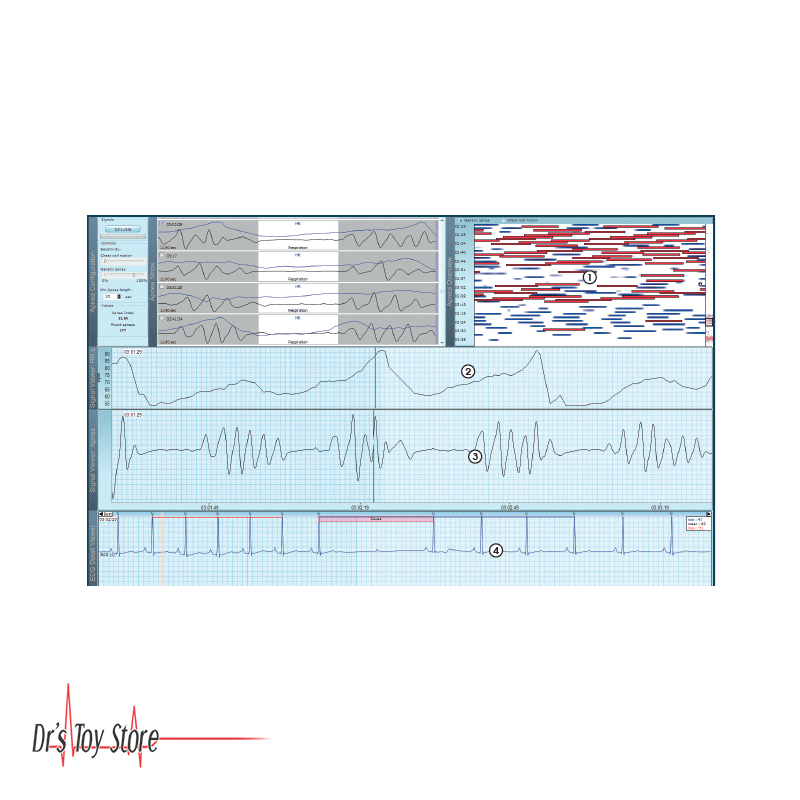

  • Apnoe Detection allows the doctor to locate all apnoeas at a glance using the colored apnoea overview screen. No ECG beat or arrhythmia editing is necessary.
  • ST-/QT-/pacemaker analysis
  • QRS detection
  • P-wave detection and atrial analysis
  • Motion detection
  • 3-channel ECG
  • Max. 80 hours recording time
  • Water resistant
Package includes:
  • AR-12 Plus Unit
    • Patient Cable
    • AC Adapter
    • Carry Case
    • SD Memory Card
  • DARWIN2 Physician Enterprise Software
  • USB Dongle Version
  • User Manual
Technical Specifications:
  • Dimensions: 2″ x 3″ x 1″ (Without Cable)
  • Weight: 4 lbs
  • Protection Against Ingress of Water: IPX4 (In Protective Pouch)
  • Real-time analysis (temporal resolution)
    • R Peak: 250 μs
    • P and T: 2000 μs
    • Pacemaker: 250 μs
  • ECG
    • Dynamic Bandwidth: 12 – 14 mV, typically 13 mV
    • Analog Bandwidth: 1.6 kHz
    • Lower Filter Frequency: 0.045 Hz
    • Patient Cable: 7 Lead
    • Channels: 3
    • Sampling Rate: 4000 – 8000 Hz
    • Recording Rate AR12 Plus: 125, 250 or 1000 Hz (with 3-lead patient cable: 250 Hz)
    • Resolution: 12 bit
  • Acceleration Sensor
    • Channels: 3
    • Sensitivity: 200, 300 or 800 mV/g
  • Power Supply:
    • Vin (Supply Voltage) 1 x 1.5v
    • Battery: AAA Battery
    • Internally Occurring Voltage: 3 – 12V, typically 3V
    • Operating Duration:
      • Approx. 80 Hours at Recording Rate of 125 Hz
      • Approx. 50 Hours at Recording Rate of 250 Hz
      • Approx. 48 Hours at Recording Rate of 1000 Hz
  • Ambient Conditions (Storage and Operation)
    • Temperature: 10 – 45°C
    • Humidity, Non-Condensing: 10 – 90 %RH
    • Atmospheric Pressure: 700 – 1060 hPa
