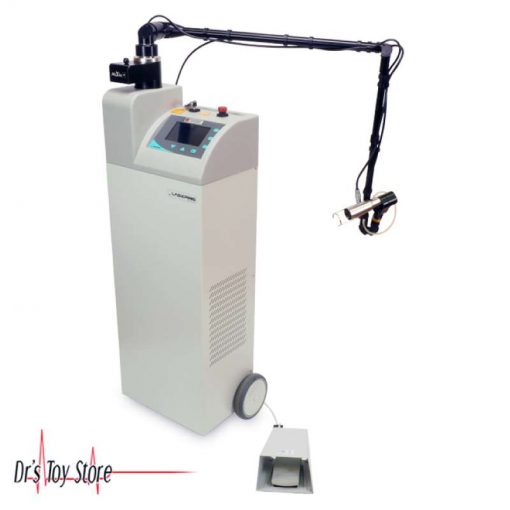

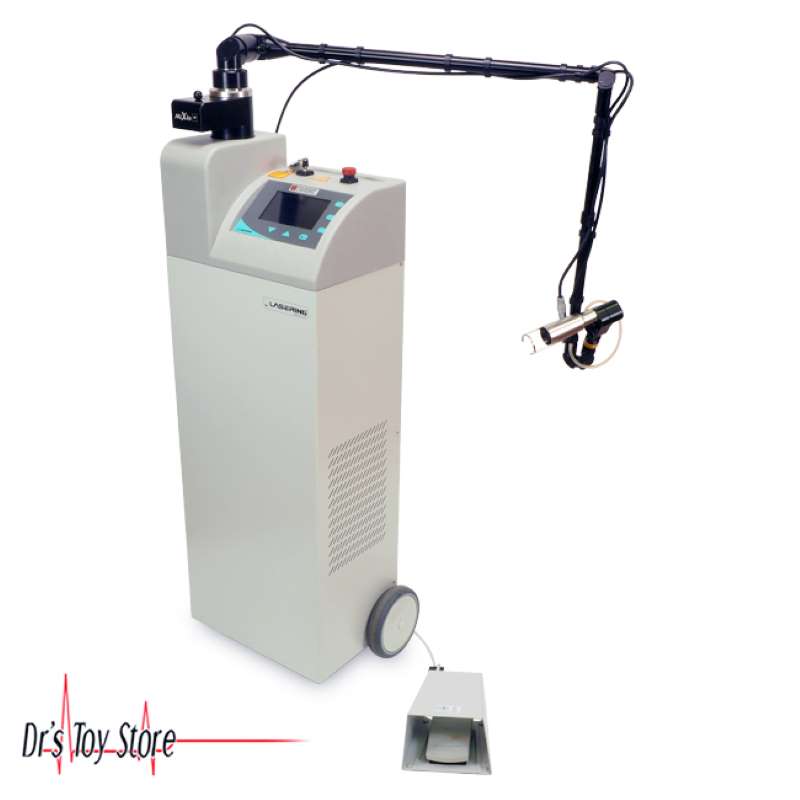

Lasering Slim Evolution MiXto-SX CO2 Laser System

Lasering Slim Evolution MiXto-SX CO2 Laser System

The Lasering Slim Evolution MiXto-SX CO2 Laser System is the leading CO2 surgical laser on the market, by combining advanced technology with ease of use it enables the surgeon to obtain the very best coagulation or tissue vaporization effect in almost every circumstance. There are three modes of operation, continuous or CW, pulse and super pulse, enabling the Slim Evolution to be able to provide high power and performance at top levels and meet every operation requirement.
In the skin resurfacing procedure the laser light is absorbed by water in the skin cells and this absorption, in turn, causes the instantaneous vaporization or destruction of the cell itself. The advanced Lasering computer scanning technology produces such a fast scan that it allows the physician to have an amazing control in order to treat only as deeply as needed. This lets the physician remove wrinkles, soft lines and deep wrinkles, soft lines and deep wrinkles in a gentler way than with ER: YAG.

Immediate Tightening of collagen fibers to improve wrinkles and loose skin. The texture is also an improvement by removing pigmentation problems, reduces pore size, wrinkles, acne scars and other textural irregularities.
Downtime is reduced significantly with the MiXto SX Fractional technique, making the healing process much quicker, enabling patients to get back to their normal lifestyle sooner.

Lasering Slim Evolution MiXto-SX CO2 Laser System Features

• No Anesthesia in most cases
• No Need Cooling
• No Consumable Costs
• No Pre-treatment preparation
• Easy to Use
• Short Procedure Time (up to a 4cm2 treatment area per scan)
• No Collateral Effects
• Faster Healing Time
• Remarkable Result

Lasering Slim Evolution MiXto-SX CO2 Laser System Applications

• Dermatology
• Plastic Surgery
• Aesthetic Surgery
• Gynecology
• ENT
• Proctology
• Dentistry
• General Surgery

MiXto-SX CO2 Laser Technology

 * FRACTIONAL MODE CW CHOPPED “SX” *

• Spot size: 180 μm, 300 μm
• Laser Beam Energy: 1 – 480 mJ per Spot
• Pulse Width: 2.5 msec – 16 msec
• Fractional Coverage Settings: 5, 10, 15, 20, 40% Using “Z” algorithm scan pattern
• Scan Area
  • Spot 300 μm: 6  x 6 mm – 20 x 20 mm
    Spot 180 μm: 5 x 5 mm – 12 x 12 mm

 * MODE “T” – TOTAL COVERAGE (100%) *

• Spot size: 300 μm
• Laser Beam Energy: 1 – 24 mJ per Spot
• Pulse Width: 2.5 msec – 16 msec
• Fractional Coverage Settings: 5, 10, 15, 20, 40% Using “Z” algorithm scan pattern
• Scan Area
  • Spot 300 μm: 6  x 6 mm – 20 x 20 mm
    Spot 180 μm: 5 x 5 mm – 12 x 12 mm

Lasering Slim Evolution MiXto-SX CO2 Laser System Specifications

• Model: SLIM E30
• Type of Laser: CO2 Laser
• Wavelength: 10.600 nm
• Laser Operating Modes
  • Continuous Wave(CW)
  • Pulser
  • SuperPulse
• CW Power: 0.5 – 30 W at tissue
• SuperPulse Average Power: 0.2 – 12 W at tissue
• Pulser Average Power: 5 – 25 W at tissue
• Tissue Exposure Modes
  • Continuous
  • Single Pulse
  • Repeat Pulse
• Aiming Beam: Diode Laser (Red), 635 nm
• Articulated Arm: Lightweight, aluminum fiber, 7 joints spring balanced
• User Interface: Color TFT with Touch-screen technology
• Electrical Info: 100 – 240 VAC | 50 – 60 Hz | 660 W
• Dimensions: 13 3/4″ W x 9 1/2″ D x 39 1/3″ H
• Weight: 66 lbs
