DTS 1200G Digital 12-Channel ECG Machine

DTS 1200G 12-Channel ECG/EKG Machine

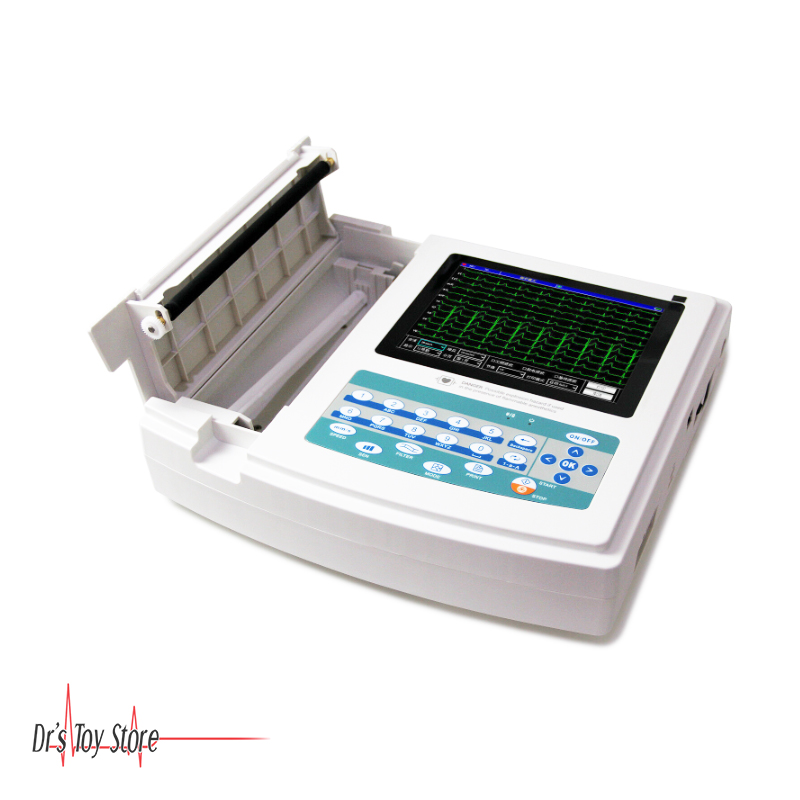

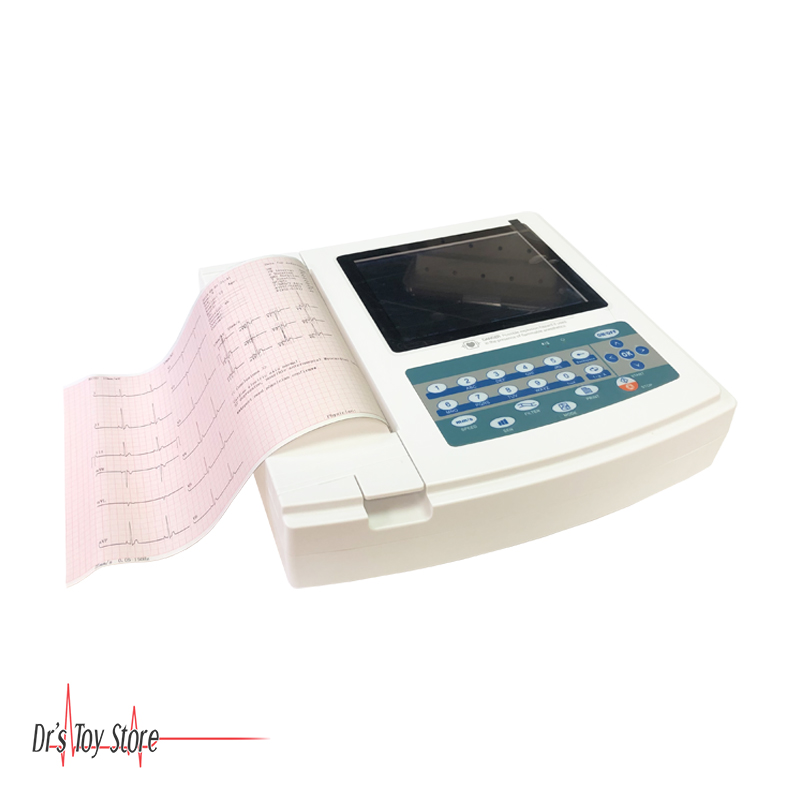

Introducing The DTS 1200G Digital 12-Channel ECG Machine

This electrocardiograph collects 12-lead ECG signal simultaneously and reads results onto an ECG waveform with thermal printing system. This device features a variety of qualities including recording and display of ECG waveform in AUTO/Manual mode. The DTS ECG Machine measures and diagnoses ECG waveform parameters automatically and prompts for “Lead off” and ” Lack of paper”, Case database management.

Features:

• Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.
• Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
• Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
• In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it is 3s case), which meets the requirements of visiting a patient at home and body examination.
• Built-in memory stores up to 1000 cases, convenient for case review and statistic.
• With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
• Multiply printing modes and formats, including auto 12×1, auto 6×2+1, auto 6×2+1_H, auto 6×2, auto 6x2_H, auto 3×4+1, auto 3×4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
• Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.

Specifications:

• Calibration voltage: 1mV
• Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
• Noise level: ≤15µVp-p
• Input circuit current: ≤50nA
• Input impedance: ≥50MΩ
• Sampling accuracy: 12-bit
• Safety classification: class I, type CF and defibrillation-proof applied part
• Recording mode: thermal printing system
• Paper size: 210mm(W)×20m(L)
• Sampling frequency: 1000Hz
• EMG interference filter: 25Hz/35Hz (-3dB)
• Power frequency filter: AC 50Hz/60Hz(-20dB)
• Paper speed:
• Auto: 25, 50mm/s, ±5%
• Rhythm: 25, 50mm/s, ±5%
• Input mode: floating and defibrillation protection
• Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
• CMRR: >60dB, >100dB(add filter)
• Time constant:≥ 3.2s
• Patient leak current: <10µA
• Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%
• Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.
• Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.
• Manual record: set record according to record format, manually switching leads.
• Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
• Power supply:
  – AC: 100V~240V(50/60Hz)
  – DC: 14.8V/3500mAh rechargeable lithium battery
• Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V
• Working mode: continuous working
• Dimension: 13.38in(L) × 12.59in(W) × 3.34in(H)
• Weigh: 7.05 lbs
