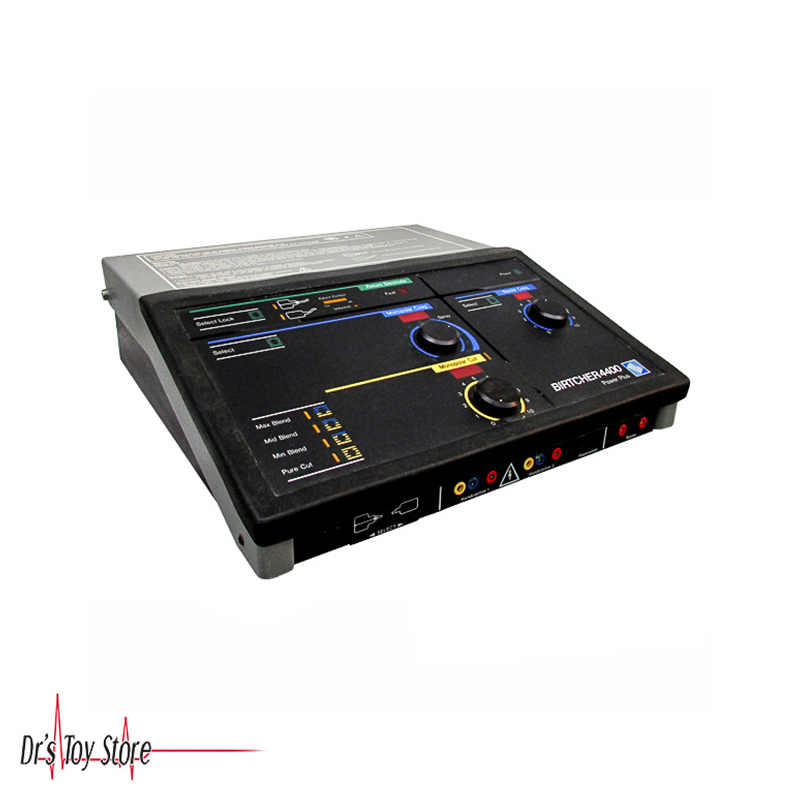

Birtcher 4400 Power Plus ESU Unit
The Birtcher 4400 Power Plus Electrosurgical Unit offers shared power for coagulation when 2 hand controlled pencils are needed.
- OUTPUT MODES: Cut (pure, blend), Coagulate, Spray Coagulation
- BIPOLAR OUTPUT: Coagulate only
- MOUNTING: Tabletop (cart optional)
- DIMENSIONS: 17 1/4″ W x 17 3/4″ D x 5 3/4″ H
- WEIGHT: 32 lbs
- GENERATOR: Solid-state
- POWER NEEDED: 100 – 120 VAC
- OUTPUT POWER
- Pure Cut: 300 W @ 500 Ohm
- Min Blend: 250 W @ 500 Ohm
- Mid Blend: 200 W @ 500 Ohm
- Max Blend: 150 W @ 500 Ohm
- Coag: 100 W @ 500 Ohm
- Bipolar: 50 W @ 500 Ohm
- WATTAGE DISPLAYED: Yes
- PROTECTION CIRCUITS: Return electrode patient contact quality monitor and cable monitor
- OUTPUT CONFIGURATION: Isolated
- MODE OF ACTIVATION
- Handswitch: Yes
- Footswitch: Yes
- COOLING SYSTEM: Convection
- Visual Signals: Yes
- Audio Signals: 5 tones
- Volume control: Yes
- INDEPENDENT OUTPUT: Discrete, simultaneous spray coag on demand
- Frequency: 493.5 kHz (420 kHz for coagulate)
