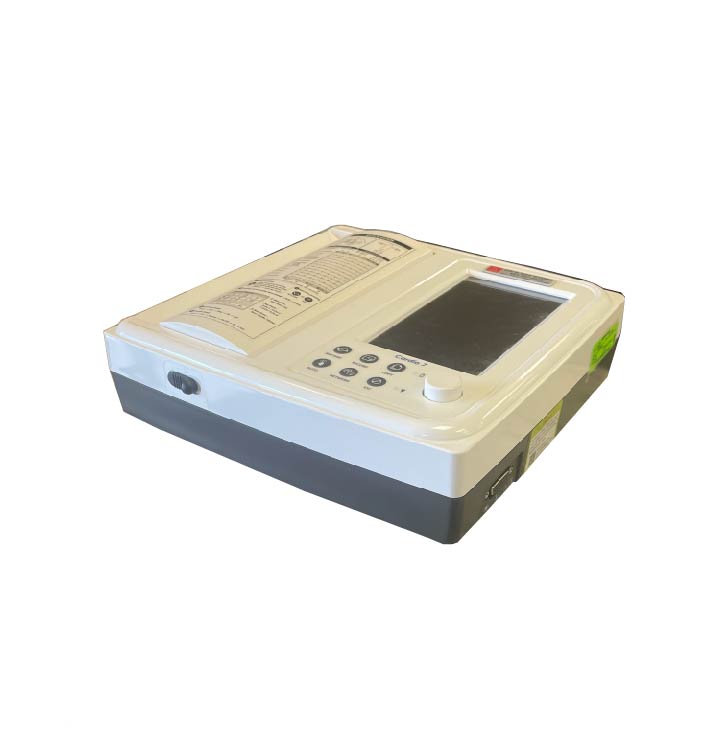

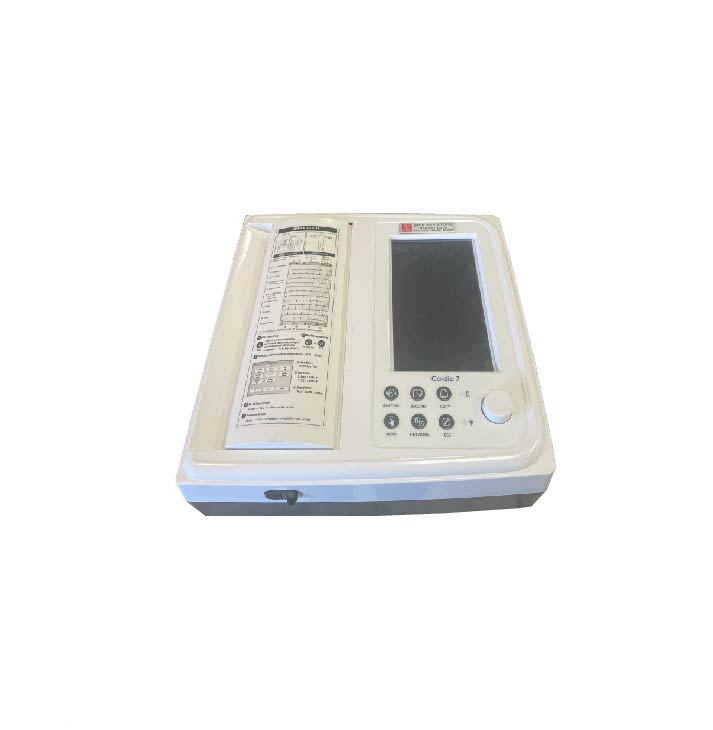

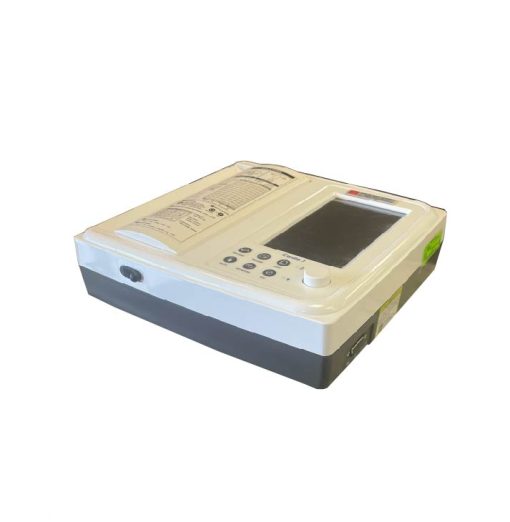

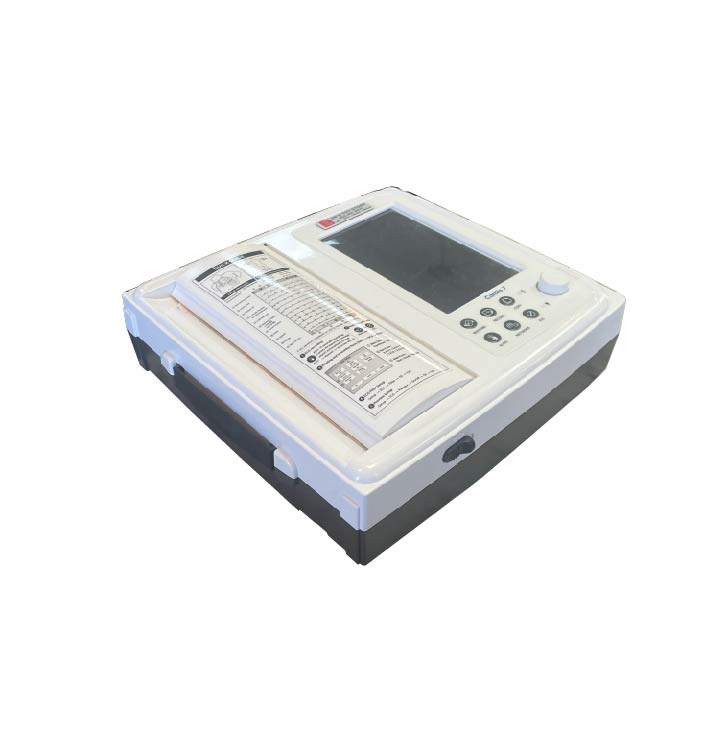

Bionet Cardio 7 ECG


Out of stock

SKU: BIO-CA7 Category:

Bionet Cardio 7 ECG

User-friendly interface & diagnosis

  • Full touch operation with easy of use 6 buttons for streamlining line workflow
  • Thermal A4 size print out
  • Text, Guide, Vector printout format for enhanced interpretation
  • Rechargeable Li-ion battery for 180 min. operation / 200 pages printout
  • Long term recording of 3,5,10 min. of various analysis algorithms

Network & Data management

  • Wired/Wireless network connectivity to HIS/EMR with easy DHCP interface
  • 200 Internal memory storage data
  • BMS PLUS connection for data management from PC through LAN & for data transfer to HIS (PACS/EMR) with various file format: JPEG, BMP, XML, PDF, MFER, DICOM
  • Full disclosure up to 5 min. for HRV, Arrhythmia analysis

Product Specifications

  • ECG Lead: Simultaneous 12 Leads Resting ECG
  • Recording Channel:  3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 6CH+ST map

1CH Long Time(1min, 3min, 5min,10min) and

Special Beat Report (Text, Guide, Vector, ST map)

  • Gain: 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV
  • Printing Speed:  5, 12.5, 25, 50, 100 mm/sec
  • Sampling Rate:  Analysis Sampling Rate – 500

Digital Sampling Rate – 8,000

  • Filters: AC (50/60 Hz, -20dB or better),

Muscle (25~35Hz, -3dB or better),

Base line drift (0.05Hz, 0.1Hz, 0.2Hz, -3dB or better),

Low pass filter(off, 40Hz, 100Hz, 150Hz)

  • Display: 800 x 480 pixel resolution, 7” Color TFT wide display

12 channels preview, ID, HR, Gain, Speed, Power status

  • User Interface: Touch screen, Rotary push-knob
  • Printer Resolution: Thermal print head, Roll Paper

Report paper width : A4/Letter 215mm(8.5”)
length : A4 297 mm (11.7”)
Letter 279mm(11”)

  • Resolution: 8dot/mm(0.125mm pitch)
  • Patient data: ID, name, age, gender, height, weight, race, smoke, department, room number, study desc.
  • Basic Measurement: Heart rate(30~300bpm, ±3bpm), PR/RR int., QRS dur., QT/QTc int., P-R-T

SV1/RV5/R+S amp.

  • ECG Data Storage: Internal Storage for 200 ECGs: Built- in memory.
  • Electrical: Internal noise: 20uV(p-p) max

Input impedance: ≥ 50MΩ
Input voltage range: ±5mV
CMRR: > 105dB DC offset voltage: ≥ ±400mV Patient leakage current: < 10uA Frequency response: 0.05 ~ 150 with in –3dB Isolated, defibrillation and ESU protected

  • Signal Quality Control: Pacemaker pulse detection

Lead fault detection, Signal Saturation Detection

  • Line Power: Input: 100-240Vac, 1.5-0.75A, 50-60Hz,

Output: 15Vdc, 4.2A

  • Battery type: Replaceable and Rechargeable, Lithium ion, 10.8V, 3250mA
  • Battery Capacity: 6 hours of normal use or print 200 ECG pages(12 channel format at 25mm/s and
    10mm/mV)  Battery recharge to full capacity in 3hours.
  • Communication:  LAN, WIFI(option), USB flash driver, USB barcode scanner
  • Dimensions : 300(W) x 290(H) x 89.5(D) mm , Approx. 3.5 kg
