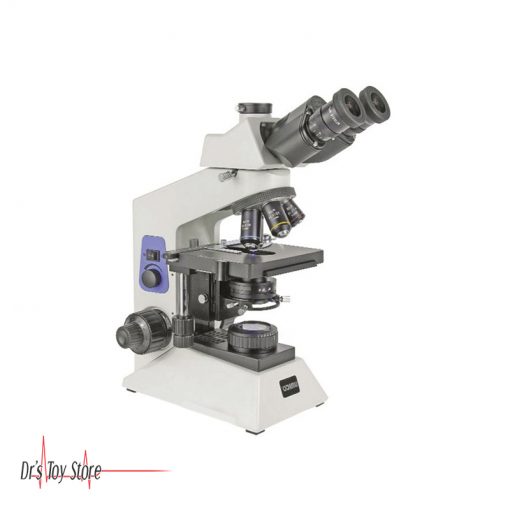

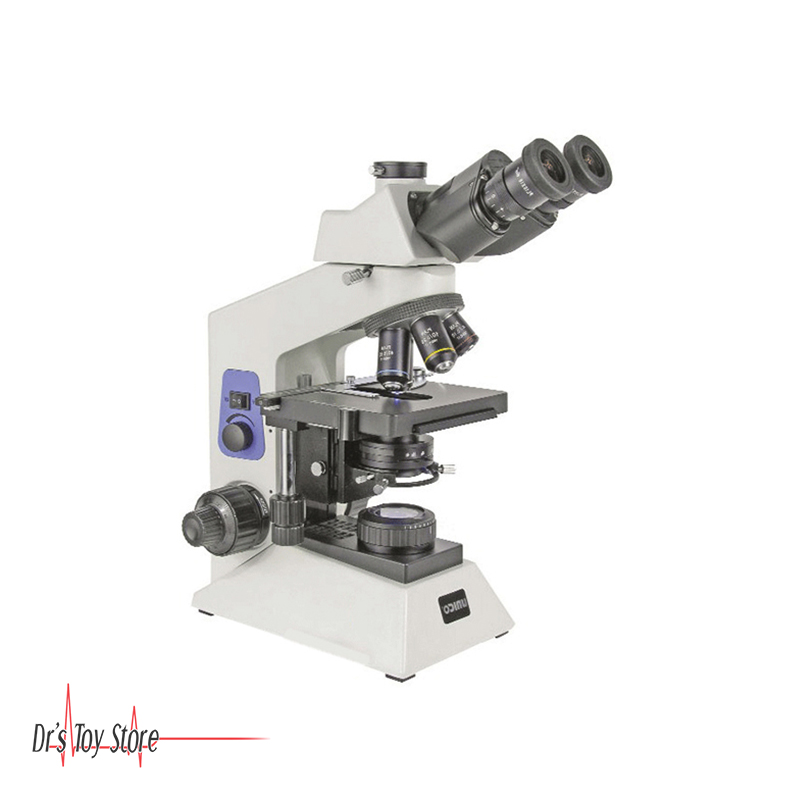

Unico G502 Achromat Microscope
Unico G502 Achromat Microscope features:
- Seidentopf Binocular Head (Inclined 30°).
- Seidentopf Camera-Ready Trinocular Head (Inclined 30°).
- Nosepiece: 5 Position Nosepiece provides flexibility.
- Eyepiece: Paired Wide Field 10X (FN 18 mm) High Point Eyepieces with Dual Diopter. A pointer or reticule can be added.
- All objectives are parfocal, parecentered, and color-coded.
- Achromatic Objectives: 4X, 10X, 40X, and 100X (Oil).
- Focus: The low position Coaxial Coarse and Fine Focusing System is designed to lessen user fatigue. The Coarse Focus Tension Control allows to increase or decrease the focusing tension. The safety stop prevents damage to objectives and specimens. The Fine Focusing is graduated at 0.002 mm.
- Stand: Ruggedly constructed all-metal stand and broad low profile base.
- Stage: Heavy duty, built-in graduated mechanical stage with low position coaxial X-Y controls. Ball bearing movement (with dovetail mechanism) allows for smooth, precise adjustments. Stage size is 180 mm x 150 mm and the range of X-Y stage movement is 80 mm x 50 mm.
- Condenser: Abbe Condenser N.A. 1.25 with graduated iris diaphragm is focusable and centerable.
- Illuminator: Built-in high-intensity LED Illuminator with field diaphragm provides Koehler type illumination for clear, sharp images. The brightness intensity control (rheostat) is conveniently located and provides steady even illumination at all levels.
- Power Input: 90 – 240 V. Fuse rating is 250 V and 1.5 A.
- Size and Weight:
- Size: 16″ Height x 6″ Width x 12″ Depth.
- Weight: 14.5 lbs.
- Shipping Size: 21″ Length x 19″ Width x 10″ Height.
- Shipping Weight: 19 lbs.
