DTS Handheld Ultrasound and Stim


SKU: OST-107 Category: Tag:

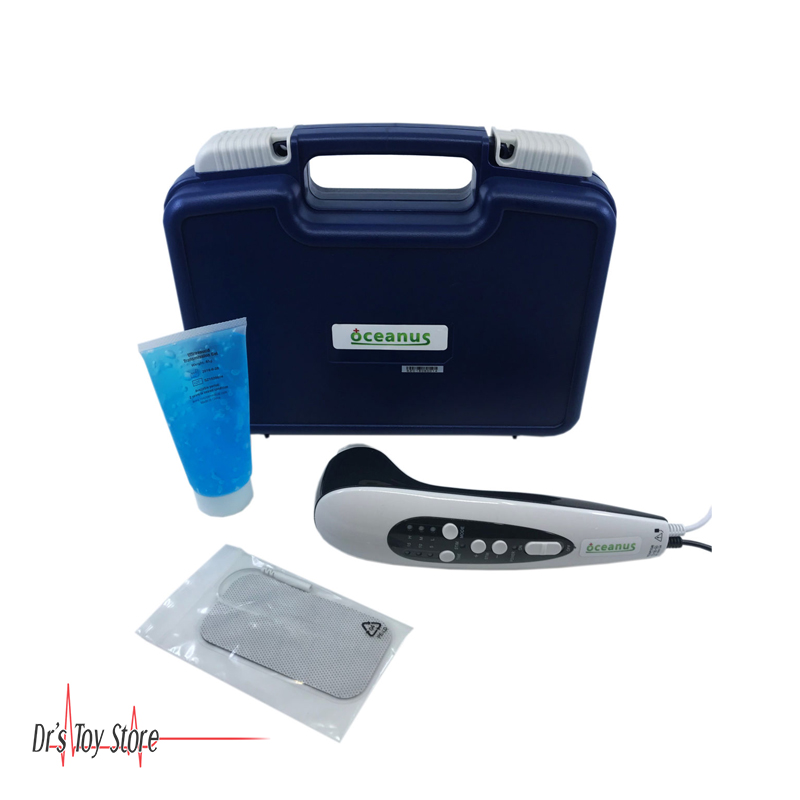

Introducing The DTS Handheld Ultrasound and Stim technology, a therapeutic ultrasound device that relieves pain in one compact sleek device. Sound-head is watertight to be able to be used under water, it can be used at a depth of 1 meter and for about 30 minutes. With the Oceanus Physio Lite the patient will be helped with the blood flow, helps relieve pain and reduces muscle spasms. Comes with a carrying case, ultrasound gel, AC/DC adapter, instruction manual and a quick start guide.

The DTS Handheld Ultrasound and Stim is helpful in the treatment of:

  • Post muscular injury
  • Acute calcific tendinitis (shoulder)
  • Post muscular injury
  • Muscular / Joint pain
  • Heel spurs
  • Mysofascial trigger point therapy – neck
  • Myofascial trigger point therapy – back
  • Patellar tendiopathy
  • Joint arthritis

The DTS Handheld Ultrasound and Stim features:

  • Combines therapeutic ultrasound and TENS for patients needing stronger therapy
  • Ergonomically designed 4 cm² aluminum soundhead
  • Features 1 MHz frequency with 3 power levels and 30 mA of TENS therapy for deep therapeutic treatment
  • Beam Non-uniformity Ratio (BNR) 5:1 max
  • Small, unique design that is easy to operate and portable
  • Three treatment times (5 min, 10 min or 15 min)
  • Automatic power shut-off after 10 minutes
  • Comes complete with device, one 2″ x 4″ white cloth electrode, lead wire, AC adapter, ultrasound transmission gel, and instruction manual
  • Power Source: AC/DC adapter
  • One-year warranty

Ultrasound Therapy Specifications:

  • Acoustic Frequency: 1 MHz ± 10%
  • Temporal Maximum Output: 9.6 W ± 20% (duty factor 100%)
  • Pulse Repetition Rate: 100 Hz ± 10% Duty Factor (L, M, H): 30%, 40%, 50%
  • Treatment Time: 5, 10, 15 minutes
  • Effective Radiating Area (ERA): 4.0 cm2
  • Actual Intensity: 2.4 W/cm2 ± 20%
  • Beam Nonuniformity Ratio (BNR): 5:1 max
  • Beam Type: Collimated Wave Form: Pulsed

TENS Therapy Specifications:

  • TENS Therapy Output Characteristics: Constant voltage
  • Treatment Time: 5, 10, 15 minutes
  • Output Wave: Bi-phasic square waveform Carrier Frequency (CF): 2-5KHz
  • Sweep Low Beat Frequency (Beat L): 1Hz, 5Hz, 80Hz
  • Sweep High Beat Frequency (Beat H): 10Hz, 120Hz
  • Intensity 30 mA
