Angiodynamics Delta 15 Diode Laser
Introducing the AngioDynamics Delta 15 Diode Laser. This medical-grade, 810 nm diode laser systems is available with power outputs of 15 W. It has been fully serviced and calibrated. This portable desktop unit is designed and manufactured in the United Kingdom. Ideal for incision, ablation, and coagulation of soft tissue. Energy is delivered through optical fibers which are functional in fluid environments and by application through an endoscope.
Angiodynamics Delta 15 Diode Laser Features
Fiber Recognition System (FRS)
- Faster procedure set-up with preset parameters
- Immediate recognition of procedure presets
- Protective door helps prevent dust particles from damaging laser or fiber
Quality
- Industry-leading 3-year standard warranty ensures every laser will receive top-notch service
- Internal sensors constantly monitor wattage ensuring a constant energy output
- More than 20 safety features at and above standard
Easy to Use
- Intuitive user interface with fewer buttons
- Programmable sound pulses allows for audible tracking of pull-back rate which increases repeatability of treatment
- Aiming beam with variable modes and brightness increases visibility in patient
- Real-time on-screen display of treatment energy
Lightweight, Compact and Portable – Easily transported between hospital and office
MultiMedia Card (MMC)
- Stores data for at least 100 treatments
- Automated tracking of procedure and fiber records
- Available Patient Data Management Software and USB-MMC Card Reader enables easy data transfer to PC
Angiodynamics Delta 15 Diode Laser Specifications
- Laser Type: Diode Laser, CW, Class IV
- Wavelength: 810 nm
- Maximum Power: 15 W
- Aiming Beam: Red Class 3R diode laser, ≤ 5 mW at port, 635 – 660 nm
- Pulse Interval: 100 ms – 1000 ms
- Pulse Duration: 100 ms – 9900 ms
- Operational Modes
- CW
- Single
- Repeat Pulse
- Fibres (SMA905): 400 µm, 600 µm or 1000 µm ( >0.37 Numerical Aperture )
- Electrical Info: 100 – 240 V AC, 50-60 Hz, 500 W max.
- Dimensions: 14 1/2″ W x 12 3/4″ D x 6″ H
- Weight: 26 lbs

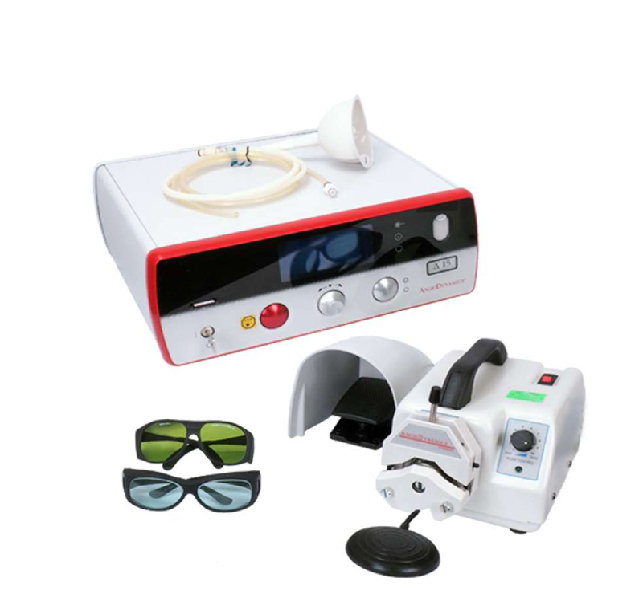

Angiodynamics Delta 15 Diode Laser Package Includes
- Accessory Pack
- 2 Pair of Protective Glasses
- Footswitch
